Product Introduction

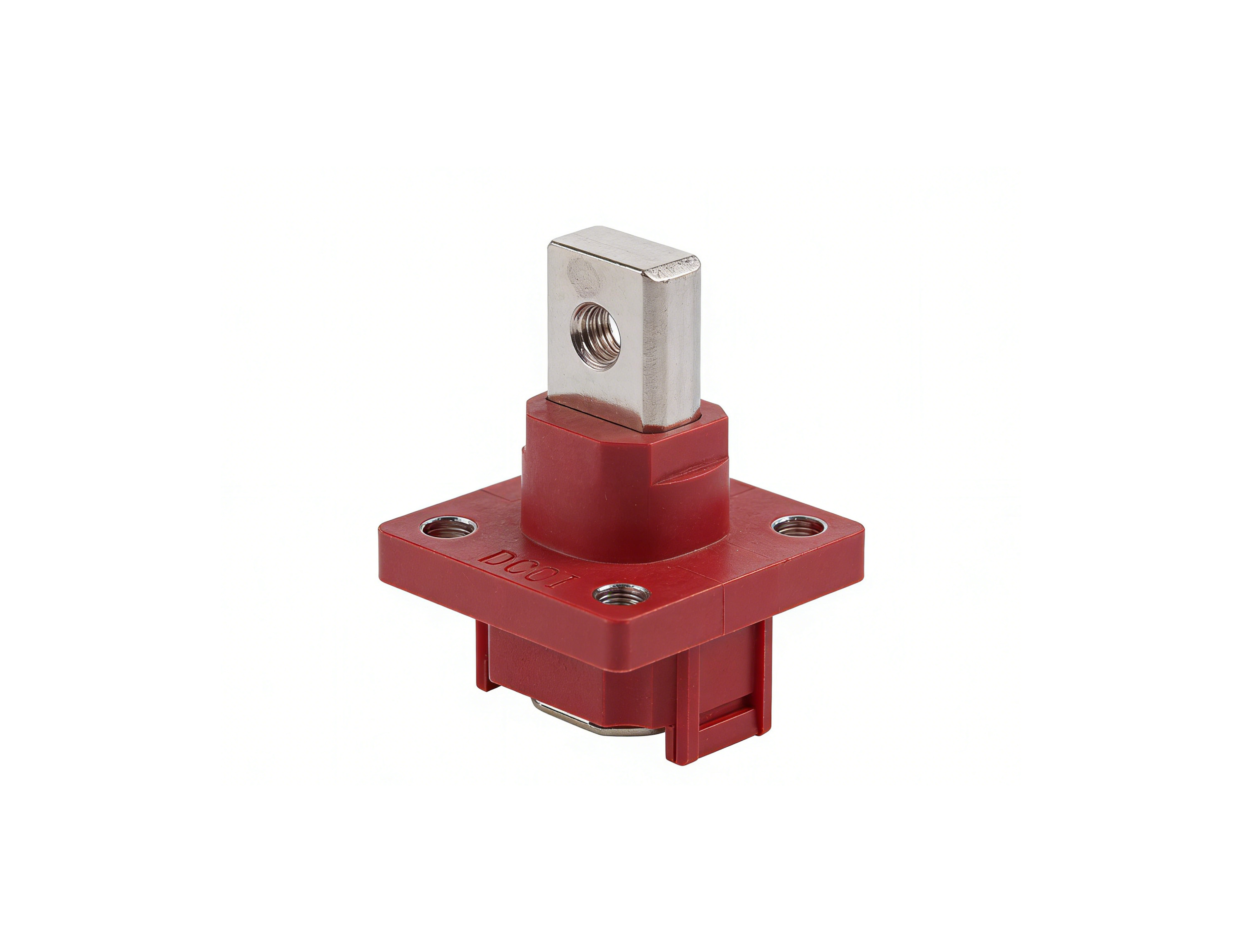

This square high-current energy storage terminal is specially designed for new energy energy storage systems, power battery packs, UPS power supplies and industrial equipment. It adopts high-conductivity pure copper nickel-plated conductive parts and flame-retardant insulation shell, with excellent electrical performance and mechanical strength, which can meet the application requirements of high current and high safety level.
Core Parameters
-
Rated Current: 120A / 200A / 300A (Optional)
-
Rated Voltage: DC 1000V
-
Material: Conductive part: pure copper nickel-plated; Shell: PA66 flame-retardant insulation
-
Installation Method: Panel through-wall installation
-
Mounting Hole Distance: 24×24mm
-
Screw Specification: M6 / M8 (Optional)
-
Protection Class: IP65 (with sealing parts)
-
Operating Temperature: -40℃ ~ +125℃
Product Features
-
High Conductivity: Pure copper nickel-plated conductive parts effectively reduce contact resistance and ensure stable transmission of large currents.
-
Safety and Reliability: PA66 flame-retardant insulation shell has excellent high temperature resistance, aging resistance and insulation performance, in line with UL94 V-0 flame retardant standard.
-
Stable Structure: Square flange design, with multiple fixing screws, ensures firm connection without loosening in vibration environment.
-
Easy Installation: Standardized mounting hole distance, compatible with mainstream energy storage equipment panels, supports quick installation and maintenance.
-
Strong Adaptability: Supports multiple current levels and screw specifications, and can be customized according to customer needs.
Application Scenarios
-
New energy vehicle power battery system
-
Industrial and commercial energy storage power station
-
Uninterruptible Power Supply (UPS)
-
Industrial automation equipment
-
Power distribution system
Technical Support and Service
-
Provide professional selection and application scheme consultation
-
Support customized product development
-
Perfect quality assurance system, in line with ISO9001 standard
